TOOL MAKING

INDIVIDUAL MANUFACTURE TAILORED TO YOUR NEEDS


The production of prototype tools is one of the main tasks of our tool shop. We use a wide variety of plastics and steels, to ensure economical and process-optimized production. This results in precisely matched forming tools according to the materials to be processed and the quantities to be produced.

Complex joining devices and sophisticated measurement fixtures complete our manufacturing program.

Range of services

  • Manufacture and machining of forming and stamping tools for prototype and small batch production
  • Production of die inserts for forming tools
  • Milling of workpieces made of cast iron, steel or plastic up to 6 tons raw part weight
  • Realizion of complex deep drawing tools through 5-axis simultaneous machining
  • High-speed and hard machining
  • Offline programming with modern HyperCAD programming software
  • CNC subcontract manufacturing

Technical data

  • 3axis machining centers with travels up to 1400 x 610 x 720 mm
  • 5axis machining centers with travels up to 4200 x 1750 x 1050 mm
  • CNC turning machining center with a working range Ø 300 x 700 mm
  • NC surface grinding machine with a working range 600 x 400 x 375 mm

WE BUILD TOOLS

RANGE OF SERVICES

  • Press brake tools
  • Embossing tools / Calibration tools
  • Multi-stage drawing tools
  • Flanging tools
  • Rolling tools
  • Punching tools
  • Tools with sideshift
  • Tool maintenance

DIMENSIONS

  • up to 3000 x 1500 x 950 mm

RANGE OF SERVICES

  • Functional samples
  • Visual sample

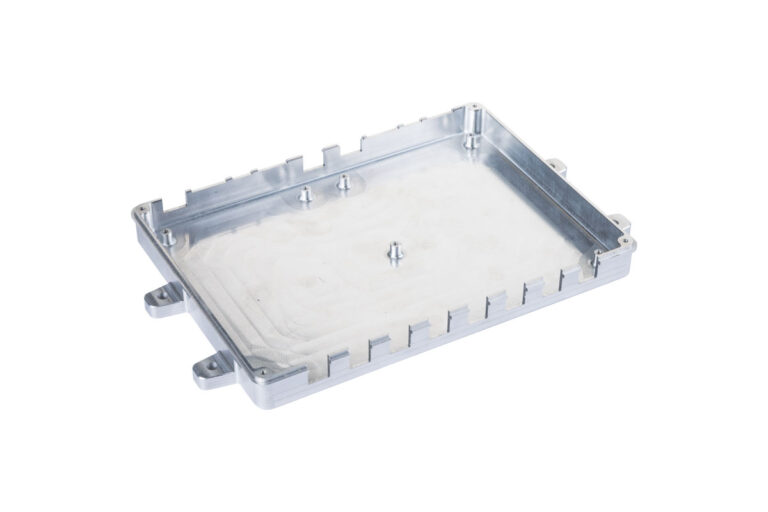

  • Turned parts
  • Small batch series
  • Reworking of castings

RANGE OF SERVICES

  • Simple testing equipment
  • Single test gauges
  • Assembly test gauges
  • Measurement fixtures

RANGE OF SERVICES

  • Assembly jigs for prototype production
  • Measuring and testing devices in series production, accuracy up to 0.05 mm
  • Clamping and assembly fixtures
  • Fully operational fixtures including all electrical, pneumatic or hydraulic interfaces

REFERENCES FROM TOOLMAKING

As a development partner to the automotive and supplier industry, we combine our many years of experience with constant innovations and the latest technologies.
